What Happens When You over Torque the Connection?

Hey there,

Let’s talk about something I see way too often on job sites: a drill pipe connection that’s been pushed past its limits. You’ve probably seen it—the box looks a little swollen, the pin tip isn’t quite right, and everyone starts pointing fingers.

But here’s the thing—it’s not just “too much torque.” It’s physics. And once you understand what’s going on inside that connection, a lot of those weird failures start to make sense.

So, let’s break it down like we’re sharing a coffee in the morning.

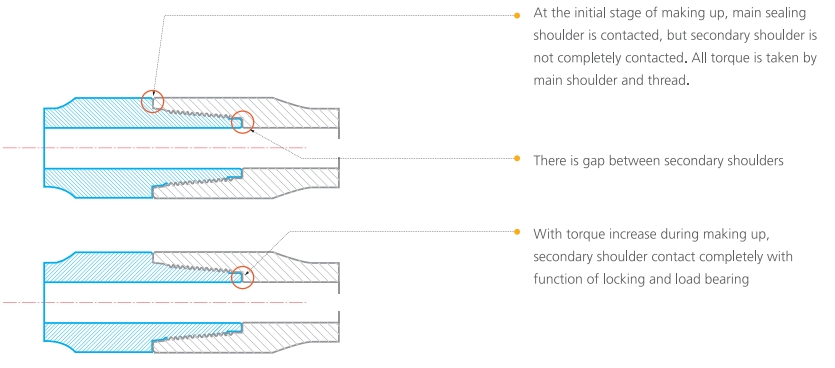

Most HDD drill pipes use a double-shouldered connection. Think of it like a handshake with two points of contact: one on the outside, where the box meets the pin’s shoulder, and one on the inside, where the pin’s tip meets the back of the box.

It’s a smart design—really. It spreads the load, keeps things stable, and handles a ton of torque. Until it doesn’t.

ere’s where things get messy. When you apply too much torque, the metal inside has to go somewhere. It’s like trying to force a puzzle piece that doesn’t quite fit—something’s gotta give.

What happens next is almost predictable:

• The box expands at the connection point. Why? Because the material’s trying to push past the raised part of the pin. It’s literally bulging under pressure.
• The pin tip deforms. It’s slamming into the back of the box with nowhere to go, so it mushrooms. I’ve seen pins that look like they’ve been in a fight—and lost.

I remember this one job down in Texas—hard clay, rocky patches, you know the type. The crew was pushing hard to meet a deadline, and the torque gauge was consistently in the red. When they pulled the string, three connections were swollen, and one pin was so deformed it took twenty minutes to break.

The driller shrugged and said, “Must be a soft batch of steel.”

But it wasn’t the steel. It was the force.

Look, I’m not here to tell you to baby your tools. HDD is a tough business.

At the end of the day, your drill string is only as strong as its weakest connection. And understanding what’s happening inside that double shoulder can mean the difference between a smooth pull and a really bad day.

Seen a connection failure you can’t explain? Send me a photo. Let’s figure it out together.

Keep drilling smart,

– Your friend in the field
